CMT 1A

Muscle Nerve   Schwann cells

---

Nerve

Toluidine blue

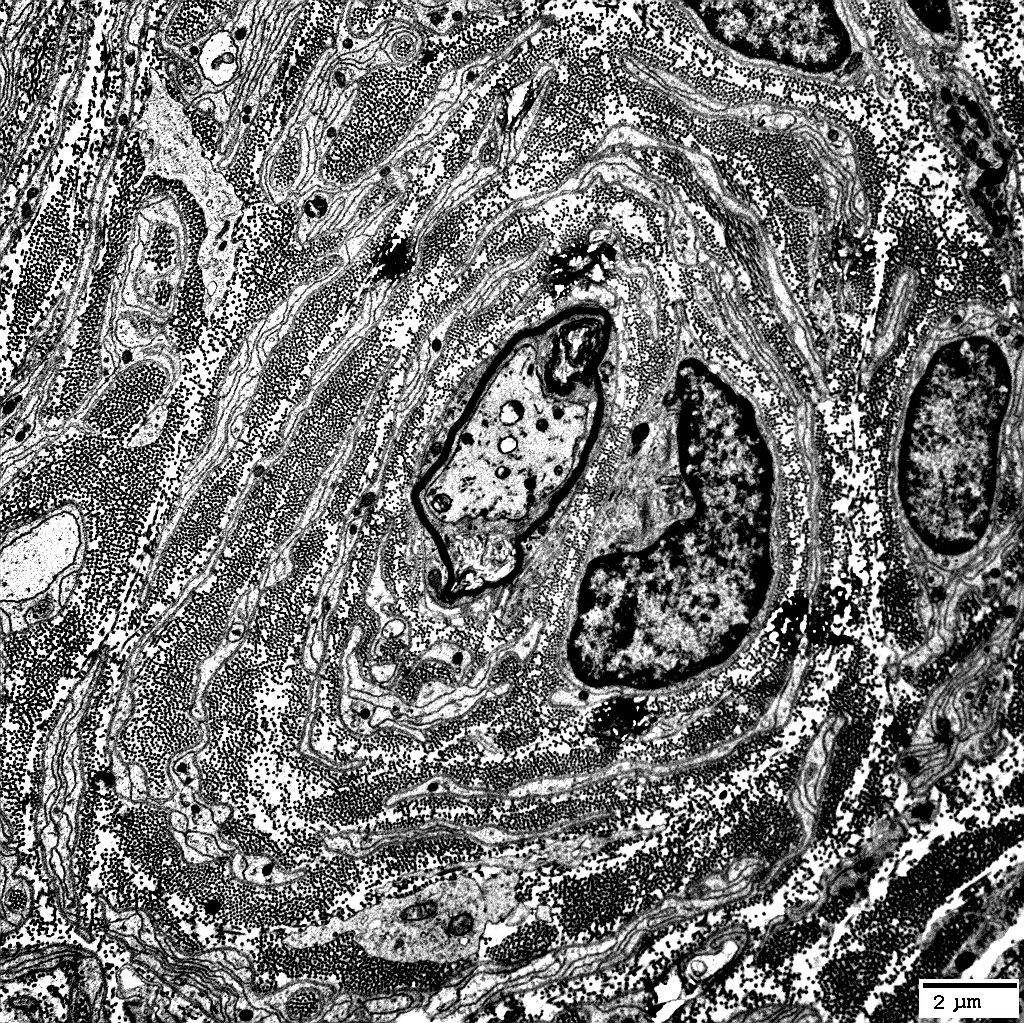

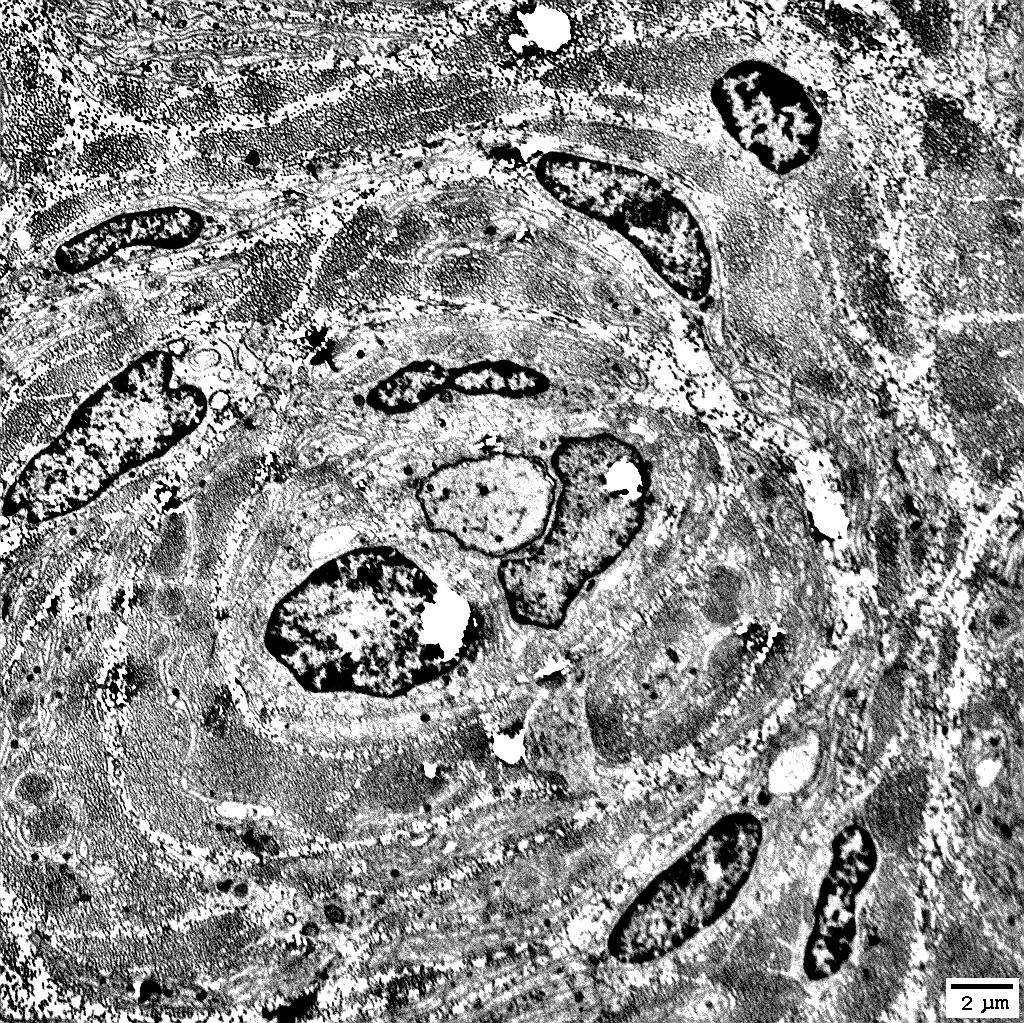

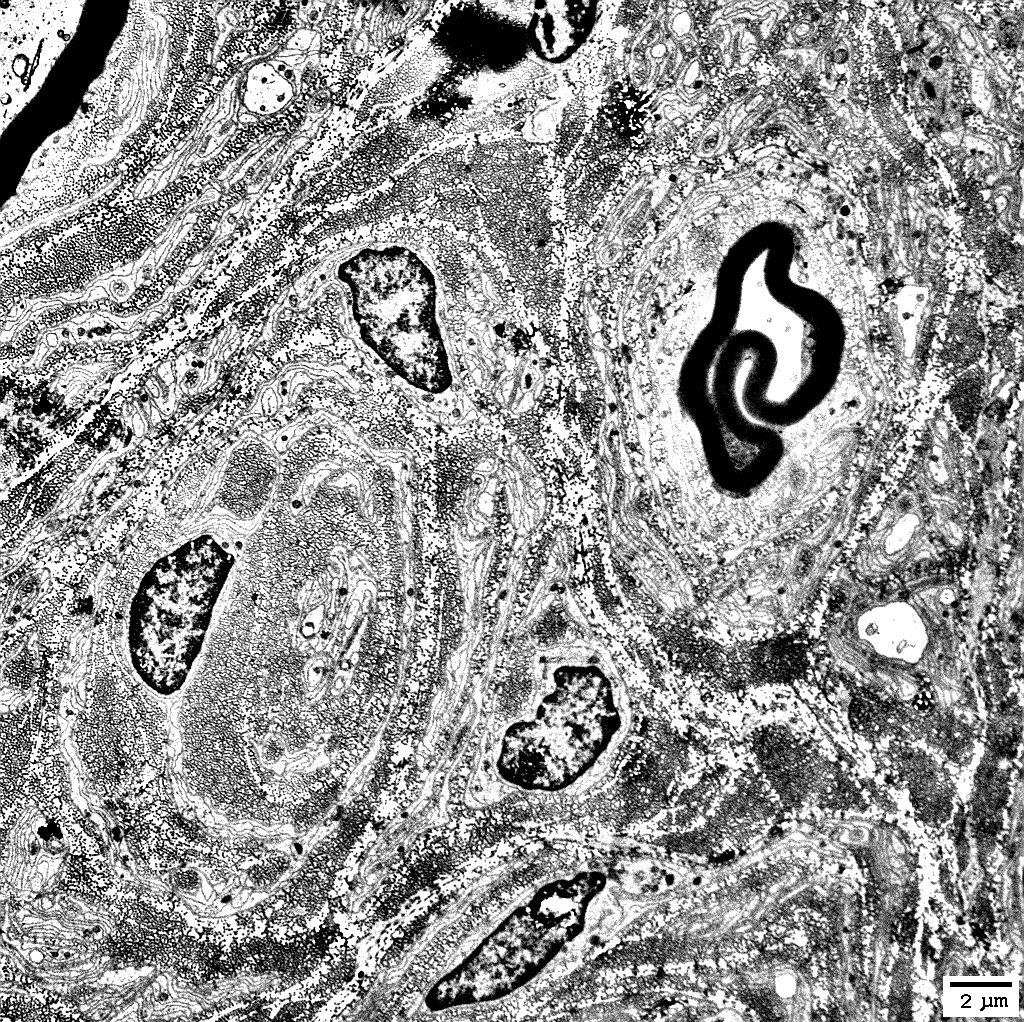

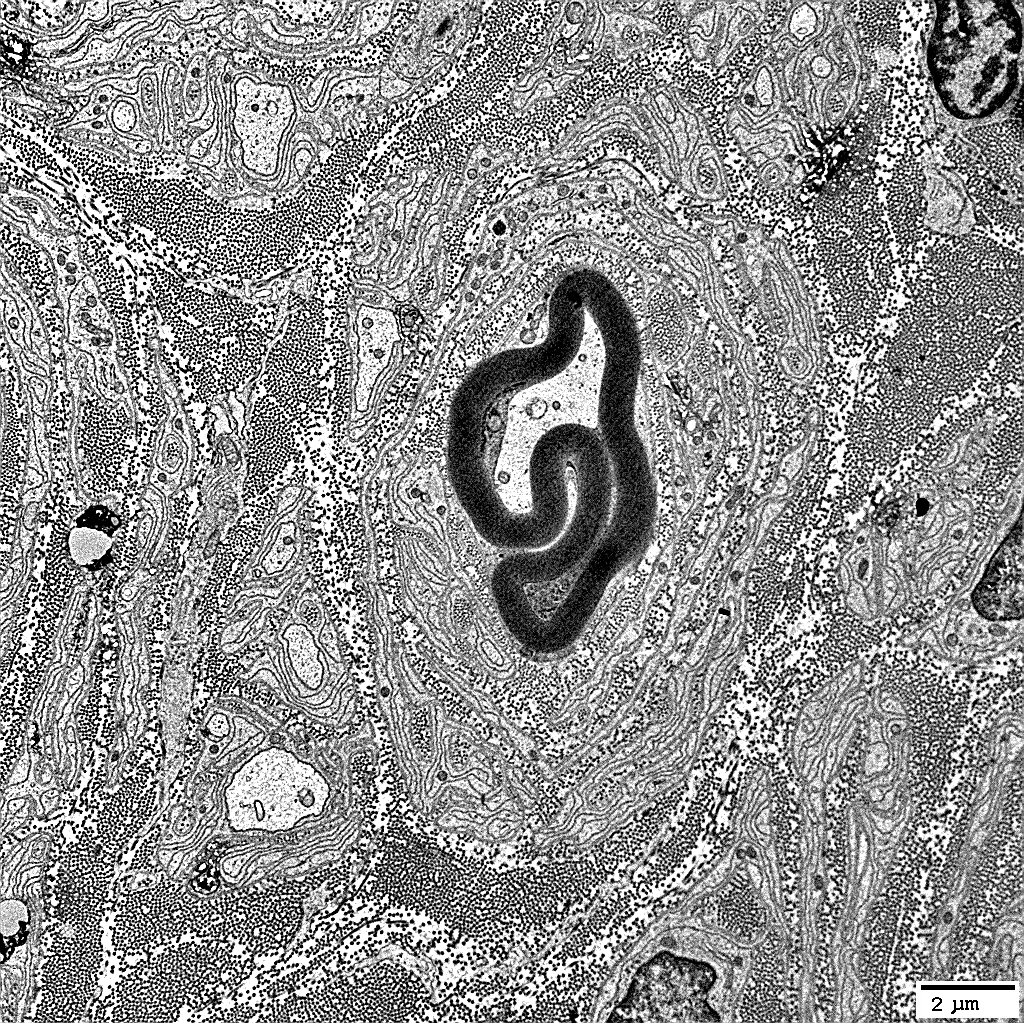

Onion Bulbs

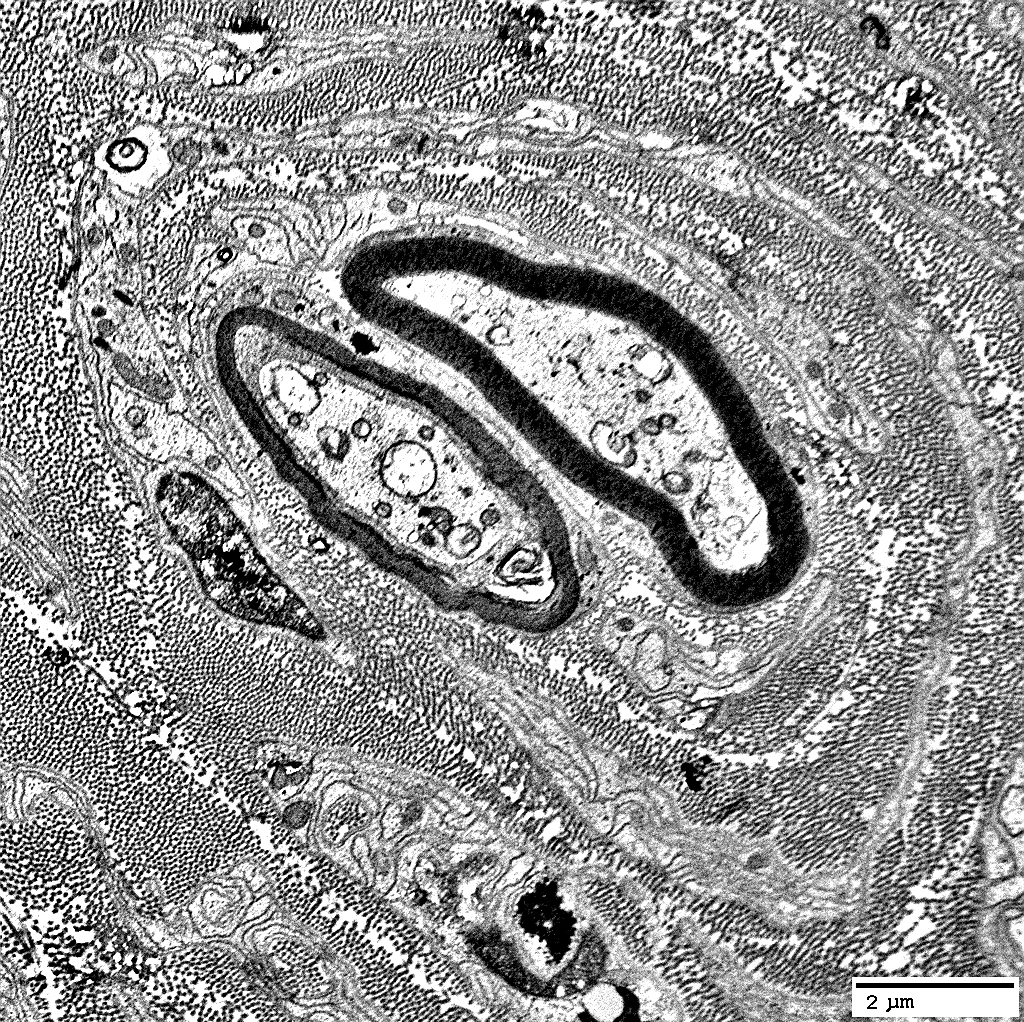

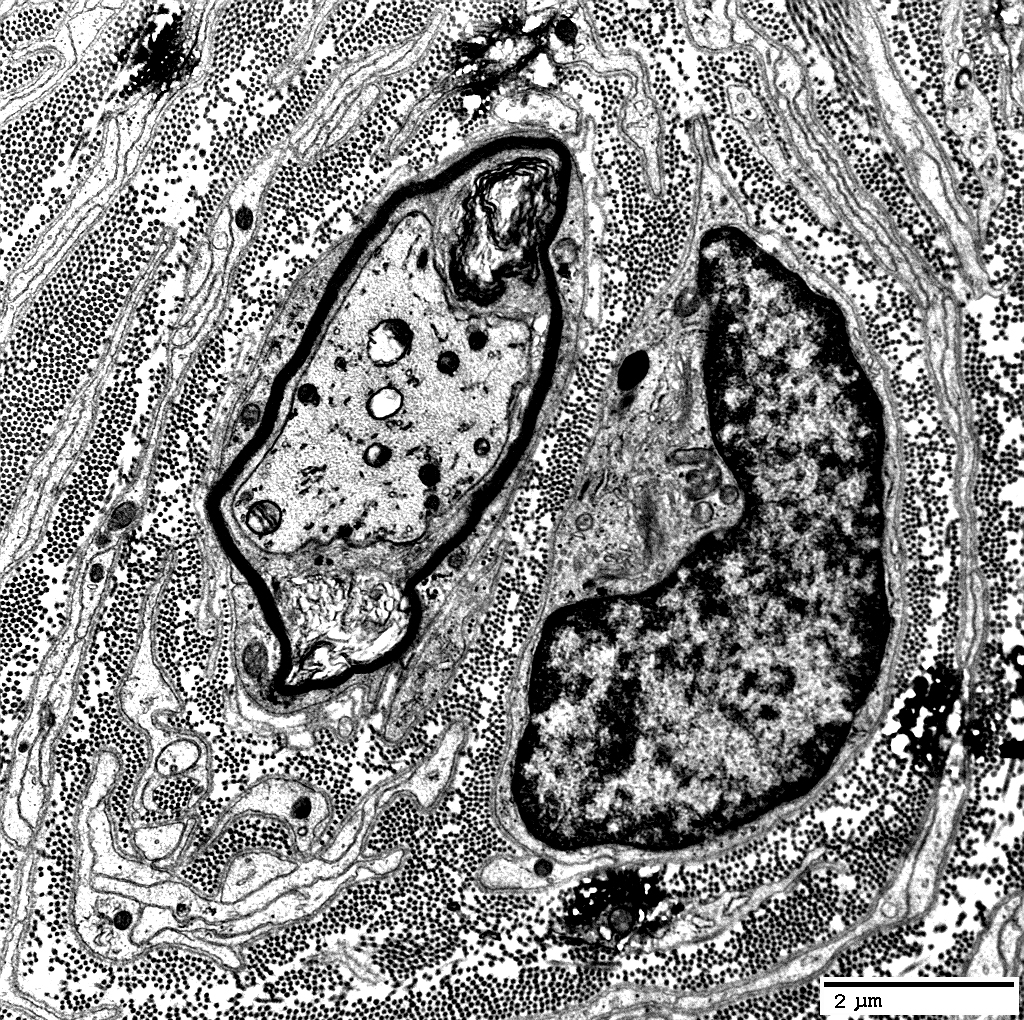

  Some contain myelinated axons; Others are empty ("Obsolete")

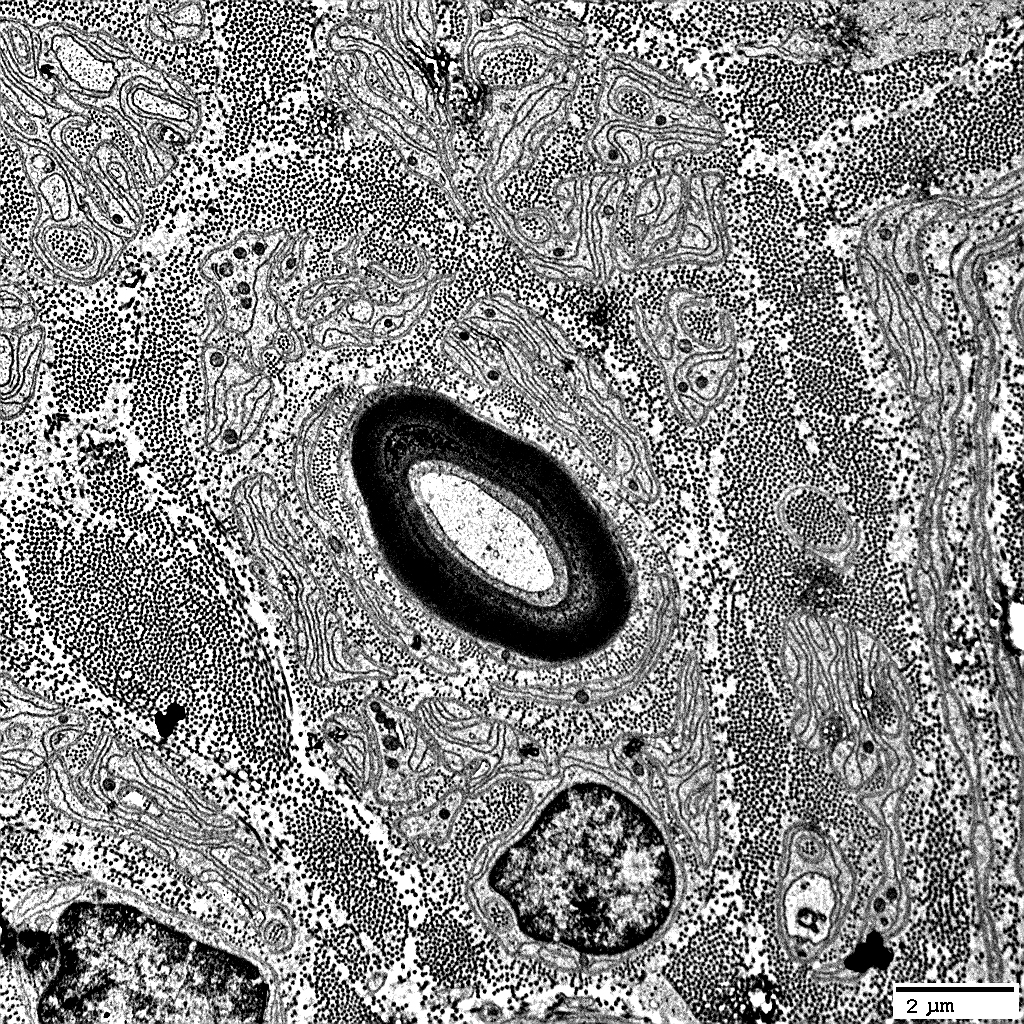

  Myelin sheaths: Thick; Normal or Thin

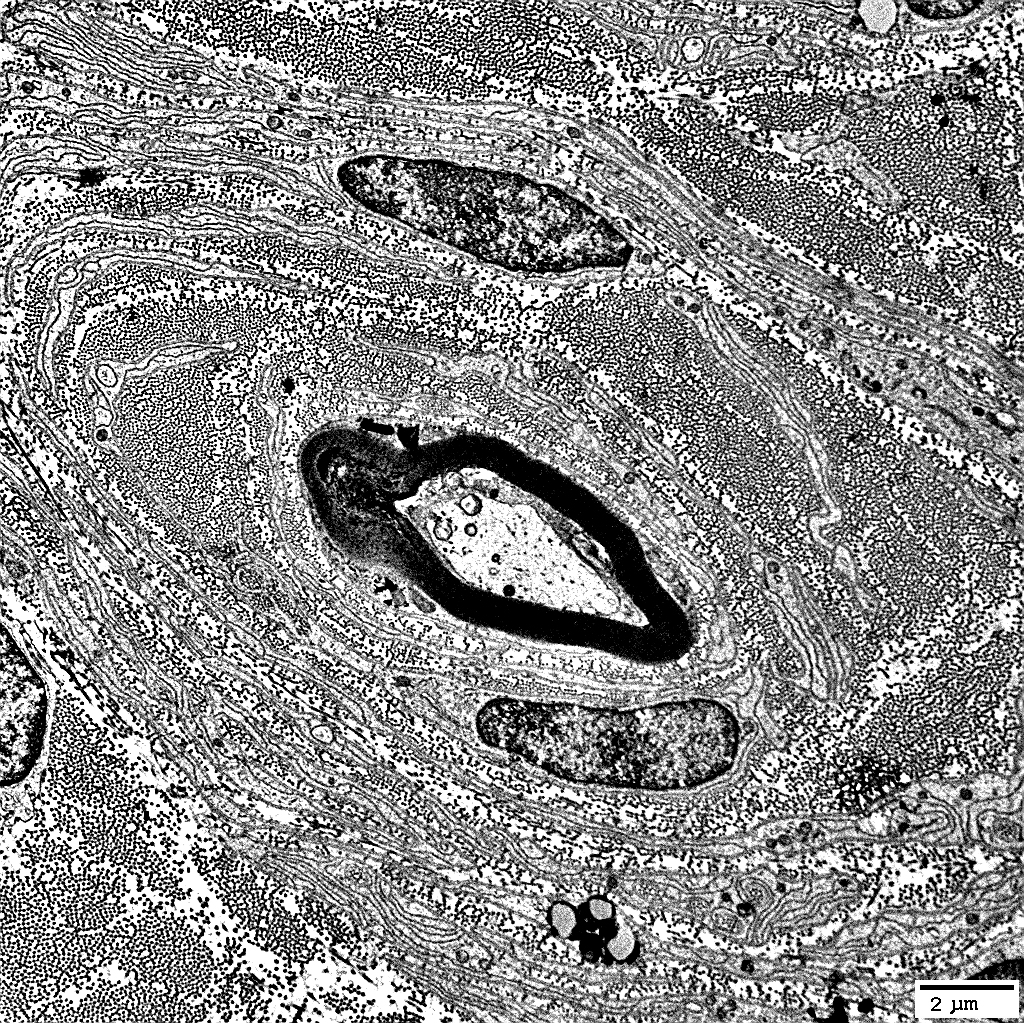

  Contain abundant non-myelinating Schwann cells

Toluidine blue

---

Axons
  Reduced numbers: Large & Small

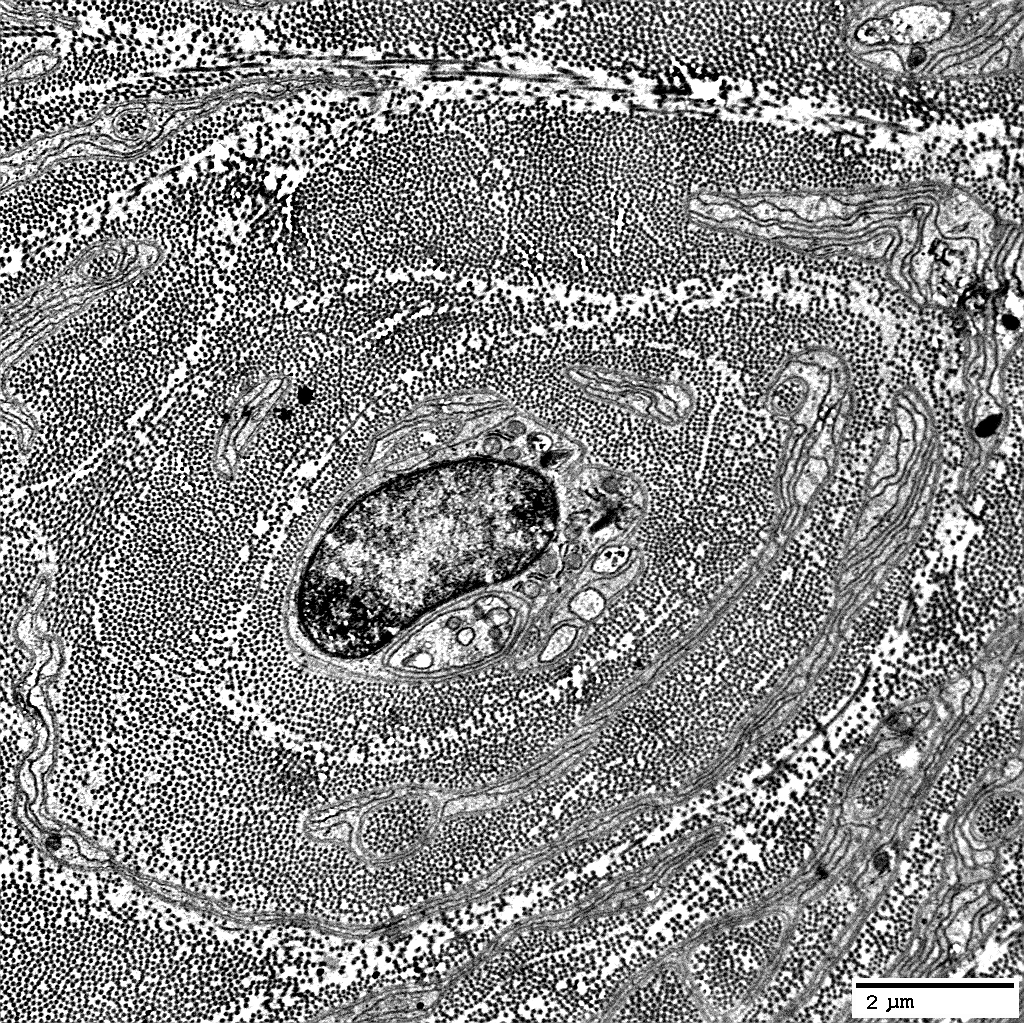

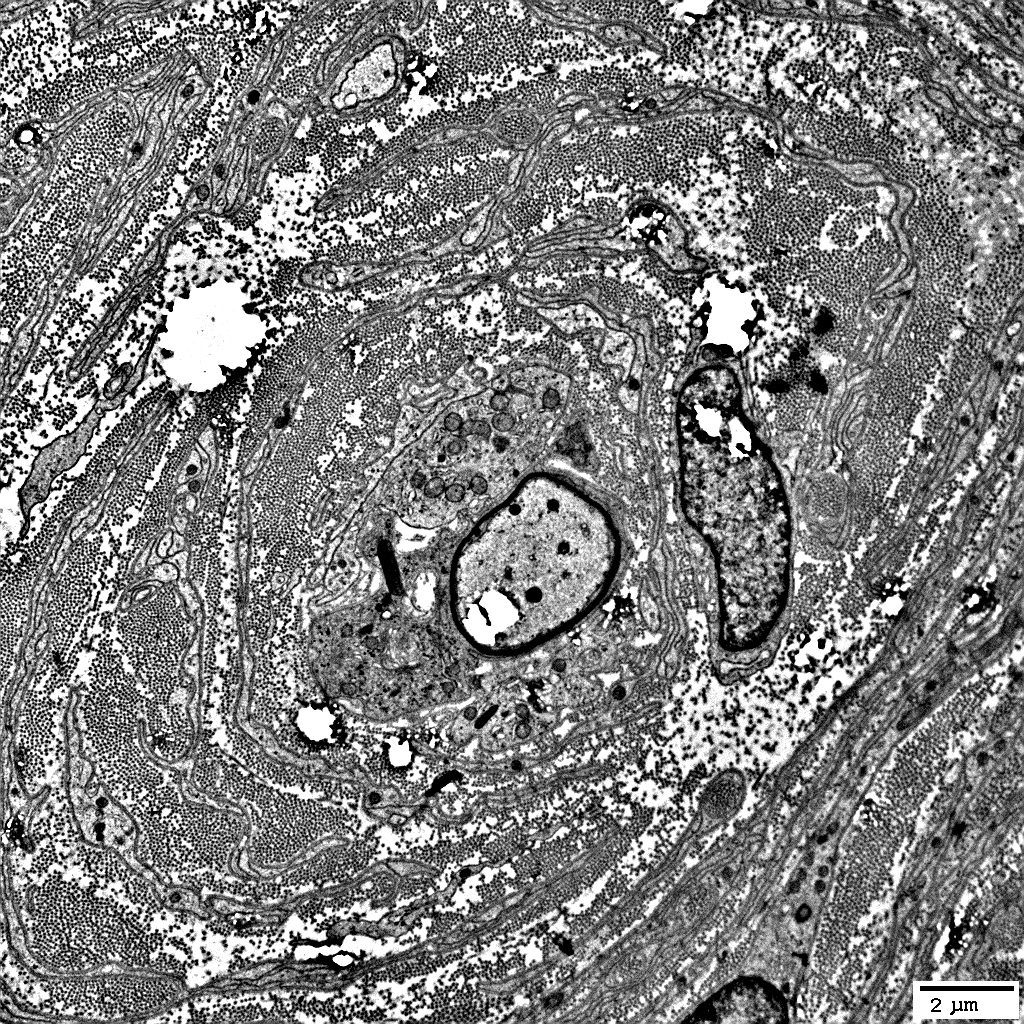

  Some onion bulbs have no axons
  Some small axons are present in layers within & around onion bulbs

SMI31: Neurofilament

SMI31: Neurofilament

SMI31: Neurofilament

---

Schwann cells in Onion bulbs

Contain: NCAM & P0 protein

---

NCAM

Non-myelinating Schwann cells in onion bulbs: In layers
Myelin around central axons: Abnormal; Stains for NCAM

NCAM

---

Schwann cells in Onion bulbs also contain P0 protein

Neurofilament (Green) & P0 (Red) stains

---

CMT 1A: Muscle

Fiber size
  Large fibers: Hypertrophied
  Small fibers: Very small; Grouped; Some pyknotic nuclear clumps

H&E

H&E

Grouped atrophy
Perimysium: Replaced by fat

Congo red

---

Small muscle fibers: Dark on NADH stain

NADH

---

Fiber types
  Large fibers: Type grouping
  Small fibers: Grouped; Type 2

ATPase pH 4.3

---

Chronic changes: Perimysium is replaced by fat

Sudan black

---

Return to Normal nerve biosies
Return to Biopsy illustrations
Return to CMT 1A
Return to Neuromuscular Home Page
Return to Nerve biopsy
Return to Demyelinating neuropathies
Return to Chronic demyelination
